Western Instruments WC-42 European AC Safety Yoke



Price: $ 820.00

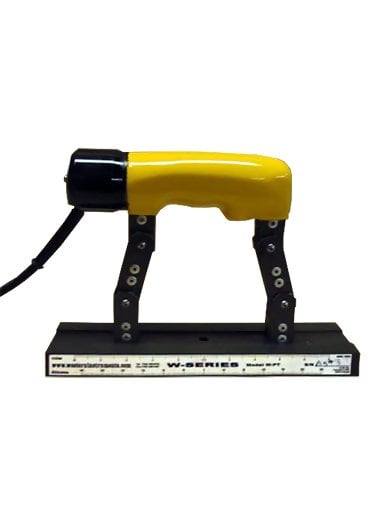

Western Instruments WC-42 European AC Safety Yoke
Activation Switch and Switch Cover
Yoke Legs and feet

The Western Instruments WC-42 European AC Safety Yoke, complies with safety regulations in different parts of the World. .

These models are not used in North America due to the use of lower voltages (nominally 115 Volts), with excellent grounding systems on convenience (Mains) outlets.To ensure even greater safety, GFCIs (Ground Fault Current Interrupters) are installed on Outdoor and in most Industrial Outlets, to further protect workers and the general public.

The WC-42 is based on the WC-6, and is supplied from a standard 42 Volt Power Supply (7.5 Amps Minimum), or Western Instruments PD-42 power supply ,with an input Voltage of 230/50.

The Switching System of the Western Instruments WC-42 European AC Safety Yoke is designed to handle these higher amperages, with a greater degree of reliability. The electronic module used in the WC-42 is onlyable to operate from an AC power supply, thus DC is not an option.

Due to the nature of the intended environment, a confined space, the AC Field provides an ease of use and maximum particle mobility. The 42 Power Supply permits a minimum 4.6kg (10 pound) lift when supplying a low voltage AC current to the WC-42 Yoke.


line
Related Products
line

Portable MPI Yoke Inspection Kits

  • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
related

line

Western Instruments W-PPS Portable Inverter Power Supply

  • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
related

line


line
Downloads
line

Western Instruments Yoke WC-42- Instruction Manual
Western Instruments Yoke WC-42- Low Voltage Yokes
Western Instruments Yoke WC-42- Trouble Shooting
Western Instruments Yoke WC-42- Power Cord
Western Instruments Yoke WC-42- Power Cord Trouble Shooting
Western Instruments Yoke WC-42- Switch Replacement
Western Instruments Yoke WC-42- Measuring Amperage Draw
Western Instruments Yoke WC-42- Cleaning Yokes

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Western Instruments WC-42 European AC Safety Yoke $820.00
Accessories Price
Western Instruments W-SWF Wet Fluorescent Kit: 8 - Aerosol Cans Fluorescent Particle Bath (Sherwin), 8 - Aerosol Cans Cleaner/Remover (Sherwin), Field Indicator, SPR-365 LED UV Flash Light (Torch) $2,013.00
Western Instruments W-DM Deluxe Dry Method Kit: Powder Bulb, 4 x 1.75 lbs. (794gr) Grey, Red, Black and Yellow Powder, Field Indicator (Magnetometer) $363.00
Western Instruments W-DMB Basic Dry Method Kit: Powder Bulb, 1 - 0f 0.75 lbs. (340gr) of Dry Method Powder Red, 1 - 0f 0.75 lbs. (340gr) of Dry Method Powder Yellow, Field Indicator (Magnetometer) $231.00
Western Instruments W-SWFD Wet Fluorescent - Dry Method Kit: Powder Bulb, 4 - Aerosol Cans Fluorescent Particle Bath (Sherwin), 4 - Aerosol Cans Cleaner/Remover (Sherwin), Field Indicator (Magnetometer), SPR-365 LED UV Flash Light (Torch) $1,727.00
Western Instruments W-WD Wet - Dry Method Kit: Powder Bulb, 4 x 1.75 lbs. (794gr) Grey, Red, Black and Yellow Powder, 2 - Aerosol Cans Black Prepared Bath (Sherwin), 2 - Aerosol Cans White Contrast Paint (Sherwin), 2 - Aerosol Cans Cleaner / Remover (Sherwin), Field Indicator (Magnetometer) $627.00
Western Instruments W-WM Wet Method Kit: 5 - Aerosol Cans Black Prepared Bath (Sherwin), 5 - Aerosol Cans White Contrast Paint (Sherwin), 10 - Aerosol Cans - Cleaner/Remover (Sherwin), Field Indicator $748.00
Western Instruments W-WMB Basic Wet Method Kit: 1 - Aerosol Cans Black Prepared Bath (Sherwin), 1 - Aerosol Cans White Contrast Paint (Sherwin), 1 - Aerosol Cans - Cleaner/Remover (Sherwin), Field Indicator (Magnetometer) $297.00
Western Instruments W-PPS Portable Inverter Power Supply 115VAC Output $721.00
Western Instruments W-PPSK Portable Inverter Power Supply 230VAC Output $776.00
Western Instruments CASE-YOKE Carrying Case for use with Magnetic Yokes $55.00
